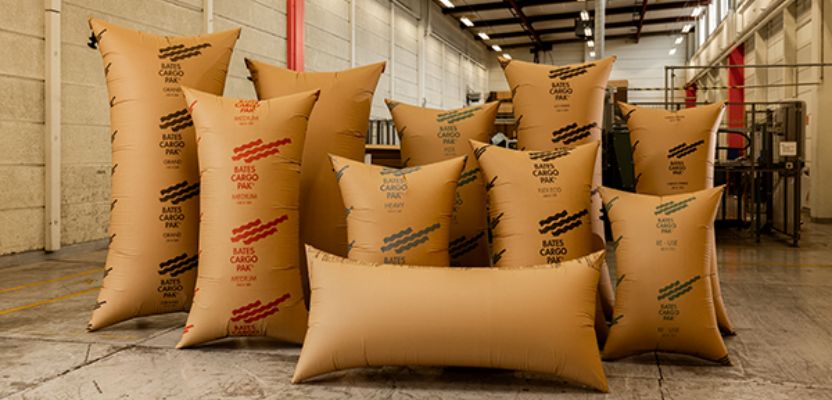

Dunnage Air Bag

Dunnage Air Bag

The purpose of a dunnage air bag is to secure the cargo and create a bulk head during transit.

The dunnage air bag is used to prevent the cargo from collapsing due to its shaking inside the vehicle vertically or horizontally during the transportation of ships, railways and trucks.

The dunnage bags will be fitted into the gaps or void between the cargos and then carefully filled with compressed air.

Our dunnage air bags are made of different materials which can protect goods from various industries and in different environments, safe and reliable.

MATERIAL DESCRIPTION

Dunnage Bags Basics:-
The basic construction of any dunnage bag is the combination of two major parts. The IN-LINER (also called bladder or balloon), which actually holds the compressed air tight at high pressure levels. The OUT-LINER (the cover) gives the shape, the stability and the enormous strength to the dunnage air bag. The strength of a Kraft paper air bag depends on the OUT-LINER'smaterial thickness and number of layers.

Material:-
All our dunnage bags IN-LINER are made of a special extruded poly-ethylene (PE-mixture) with the guarantee of a perfect tightness even under high pressure. For the OUT-LINER we use layers of special extensible Kraft paper or PP (Polypropylene) Woven Fabric with a very high Tensile strength to match with all applications.

Valve System:-
The Krishca valve allows to fill up air bags much faster with our specially designed air filling devices. The 'Venturi' effect saves up to 50 % of inflation time. However, our Valve is compatible with most of the air filling devices that are being used by the industries.

Product Advantages

Effectively prevent the cargo from collapsing and moving during transportation
Easy to operate, improve work efficiency, significantly reduces logistics costs, etc.
Shorten the time required to secure goods
Withstand weight over 9.5T
Comply with RoHS environmental protection requirements
Can be used in any damp conditions
Quick inflation for use

Features:-
» These bags acts as shock absorbers in load shifting.
» Designed to secure cargo of different industries such as pharmaceuticals, chemicals, automobile & food industries & every exporters.
» It can sustain a load up to 9.5 MT
» It is very easy to inflate & deflate.
We provide the highest quality Paper and Woven Dunnage Bags reducing damage to your cargo
» It acts as cushion in between two pallets.
» It can sustain air up to more than 3 Months.
» Manufactured in different sizes such as 900 x 1200 mm, 900 x 1500 mm, 900 x 1800 mm, 900 x 2100 mm, 1200 x 1800 mm, 1200 x 2100 mm & 1200 x 2400 mm, we also manufacture bags as per customer requirements.

Kraft Paper Dunnage Air Bag / Paper Dunnage Air Bag
Constructed of multiple layers of high-strength Kraft paper and an inner plastic lining that protects against loss of air pressure

Features
» Acts as shock absorbers
» The paper used to manufacture these bags is food grade so used in pharmaceutical & food industries.
» Puncture resistant
»Best quality material.
» The strength of our paper bag is higher as it is HDPE laminated Kraft paper.
» Leak proof & tested.

PP Dunnage Air Bag

Features
» Manufactured with high density laminated PP woven fabric
» Virgin quality material
» The valve which we are using for these bags is specially designed and manufactured by Krishca
» Leak proof & tested
» Resistant to water
» Puncture resistant quality material used
» High quality material
» Reusable» Manufactured with high density laminated PP woven fabric
» Virgin quality material
» The valve which we are using for these bags is specially designed and manufactured by Krishca
» Leak proof & tested
» Resistant to water
» Puncture resistant quality material used
» High quality material
» Reusable
